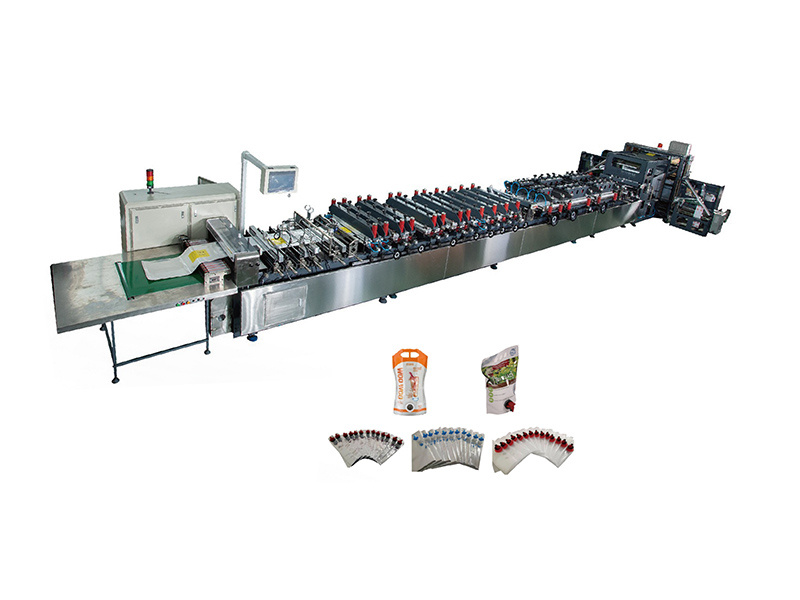

SKB700-BPZDN-MTF Four Lanes Box Pouch Bag Making Machine
Key words:
Classification:
Product Introduction
Advantages:
The three sides of the square bag have a flatst ructure, the 3D packaging effect is combined with a 25% increase in the packaging capacity,the bag-making material is reduced by 10%, and the 100% plane stands, a new type of green packaging container.A quad bag function increases the efficiency by 4 times and realizes high-speed intelligent production.
| Optional Model | 700 | 800 | Customization |
| Material | CPP,PET,OPP,PAPER and all kinds of laminating films, MDO film | ||
| Web Size | Main Web Width:1200mm，Max.Diameter:φ800mm Gusset film Max.Width:410mm，Max.Diameter:φ600mm Bottom film Max.Width:170mm，Max.Diameter:φ600mm The film size is the same for standard three side seal bags. | ||
| Bag-making Function | 3 outs 3 side-sealing bag 4 outs box pouch without zipper bag | ||
| Bag-making Speed | 120 shots/min | Unwind line Speed | 30 meters/min |
| Bag-making size | Single:H:200-640mm，W:100-380mm，Gusset depth:35-100mm,Bottom depth:35-70mm Four: H:90-150mm，W:60-150mm，Gusset depth:20-50mm，Bottom depth:25-50mm | ||
| Servo-Motor Matching | Main servo motor:1 set)，5KW1.5KW-3 set，2KW-2 set Traction servo motor:5 set Gusset unwinding servo motor:2KW-1 set Gusset location:1.0KW-1 set Gusset cutter servo:0.75KW-1 set，Gusset hotpress:1.5KW-1 set Bottom location servo:0.75KW-1 set Double cutter:1.0KW，0.75KW一各1 set | ||
| Electrical Matching | Total Power:70KW,380V,50HZ | Cold Water:10/min | Air Pressure:0.6MPa(6Kgf/)cm² |
| Over size | L*W*H:20000*3800*2300mm(By the selected finction to determine the final size) | ||
| Options | ①2 lanes zipper function | ②Automatic register for main web | ③One-way Valve Applicator machine |
| ④Die-cut(shape-cut)machine | ⑤Automatic Slider Applicator machine | ⑥Fully automatic pocket zipper | |
| ⑦Fly-Knife | ⑧Easy-handle finction(arger bag) | ||
| New Model | Automatic Detection Bag Strapping Machine | ||
Product advantages
Domain first mechanical advantages let you rest assured to choose
Domain First Machinery is a leading manufacturer of solvent-free laminating machines in the field of professional packaging machinery manufacturing in China. In particular, high-speed solvent-free composite machine (window composite, sheet composite, custom composite), in the domestic market share is high, in foreign customers have a wide range of applications. In particular, plastic-plastic, paper-plastic, aluminum-plastic double-layer composite, 3-in -1 composite machine, and dry-compound solvent-free composite machine have been well received by customers at home and abroad. Has a wealth of experience in mechanical processing, our company independent research and development, accept customer customization, do my best to meet customer needs, and strive to achieve products that meet customer concepts and production.
Intelligent production workshop
Selected Raw Materials
Processing customization
Durable
Intimate after-sales
Timely delivery
Company Introduction
Yu Xian Machinery (Shanghai) Co., Ltd. was established in Shanghai in 2009, and Yu Xian Machinery Technology (Jiangsu) Co., Ltd. was established in 2018. Yu Xian Machinery is a leading manufacturer of solvent-free laminating machines in the field of professional packaging machinery manufacturing in China. In particular, high-speed solvent-free composite machine (window composite, sheet composite, custom composite), in the domestic market share is high, in foreign customers have a wide range of applications. In particular, plastic-plastic, paper-plastic, aluminum-plastic double-layer composite, 3-in -1 composite machine, and dry-compound solvent-free composite machine have been well received by customers at home and abroad. Has a wealth of experience in mechanical processing, our company independent research and development, accept customer customization, do my best to meet customer needs, and strive to achieve products that meet customer concepts and production.
Products have been exported to Southeast Asia, the European Union, the United States, South America and more than 30 countries, a few African countries. Composite materials include BOPP, BOPET, BOPA, VMPET, CPP, PE, PET, VMCPP, cellophane, non-woven fabrics, nylon, paper, etc.
Plant environment
Customized delivery process
Order Considerations
We cooperate with Siemens, Mitsubishi, Omron, Schneider, ABB, Delixi, Fuji Library, Hitachi, Panasonic, Yaskawa, WPI, SICK, AIR-TAC, GSK, NSK, NTN, KOYO, SKF and many other global companies to develop and innovate our technology to ensure high performance, stable structure, high value and convenient operation of our products.
There will be strict testing before the goods are shipped, please check carefully after receiving the goods, if there is any problem, please contact us in time.
Online Communication
Provide customized drawings
Merchant Quotation
Sign the contract
processing production
Packaging and distribution
Confirm receipt
Transaction success
